D Series Pumps Powered by ORBIS™ Technology - Tuthill
General product information: D Series Pumps Powered by ORBIS™ Technology - Tuthill
Name: ORBIS – D series (brushless DC motor technology available eon selected D series pumps)
Class: TECHNAFLO (Mag-drive External Gear pumps)
Type: Gear Pumps
Application:
Chemistry, Medical Devices, Clinical Chemistry, Continuous Inkjet Printer, Hemodialysis Device, Laser Cooling, Color Slide, ...
Origin: USA
Brand: TUTHILL
The product is officially distributed in Vietnam by Thái Khương Pumps
Technical data:
Flow range up to 42 GPH (up to 160 LPH)
Differential Pressure to 80 PSI (5 BAR)
System Pressure to 150 PSI (10 BAR)
Viscosity 0.3 CPS to 2,000 CPS
General product information: D Series Pumps Powered by ORBIS™ Technology – Tuthill
-
- Name: ORBIS – D series (brushless DC motor technology available eon selected D series pumps)
- Class: TECHNAFLO (Mag-drive External Gear pumps)
- Type: Gear Pumps
- Application:
Chemistry, Medical Devices, Clinical Chemistry, Continuous Inkjet Printer, Hemodialysis Device, Laser Cooling, Color Slide, …
- Origin: USA
- Brand: TUTHILL
- The product is officially distributed in Vietnam by Thái Khương Pumps
Technical data:
- Flow range up to 42 GPH (up to 160 LPH)
- Differential Pressure to 80 PSI (5 BAR)
- System Pressure to 150 PSI (10 BAR)
- Viscosity 0.3 CPS to 2,000 CPS
02 · Applications
Lĩnh vực suitable
ISO 14001 Xử Lý Nước Thải
Bơm chìm cánh cắt rác & máy thổi khí hiệu suất cao.
QCVN 01:2009 Cấp Nước Sạch
Bơm tăng áp Booster & truyền tải nước sạch an toàn.
IE3 / IE4 Công Nghiệp Chung
Giải pháp bơm nước cấp lò hơi, tháp giải nhiệt & tiện ích nhà máy.
DOSING Hóa Chất — Định Lượng
Bơm định lượng chính xác cao cho quy trình pha trộn hóa chất.
05 · Sản phẩm liên quan
Products cùng nhóm
Bơm ly tâm cánh xoáy RC - SALVATORE ROBUSCHI
Bơm tự mồi dùng cho thực phẩm dòng AS - CSF
Bơm cạn monobloc K-Compact - Caprari
Bơm thực phẩm CSD - CSF
Bơm ly tâm thực phẩm dòng CR - CSF

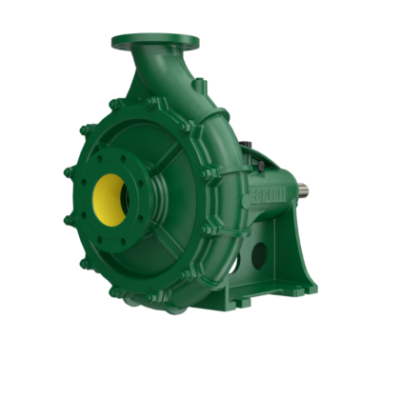

Bơm ly tâm trục ngang MEC-A / AG / MG / MR (EN 733) - Caprari
Bơm ly tâm tiêu chuẩn thực phẩm CL-CLC - CSF
Bơm ly tâm thực phẩm CS - CSF
03 · Thai Khuong Capabilities
Người thật · Việc thật · Dự án thật
Xem kho TP.HCM, đội kỹ thuật, lab test, và 15.000+ dự án đã triển khai trên toàn Việt Nam.
04 · Technical Knowledge
Knowledge pump engineering
Selecting a Chemical Filter Pump (Filter Pump) for Plating Baths & Surface Treatment
CIP/SIP and Sanitary Valve Gasket Materials: Choosing EPDM, FKM, PTFE or PEEK?
How to Select Sanitary Valves for F&B and Pharma: Type, Size, Gasket, Certification
Starmotion Pigging System: Pipeline Product Recovery for F&B and Pharmaceutical Lines
Sorio Automatic Valve Controller (Definox): Valve Position Feedback and CIP Automation
Aseptic Sampling Valves (PEX/PEAX/PEV): Cross-Contamination-Free QC Sampling for Food & Pharmaceutical Applications
05 · FAQ & Quote
Questions frequently asked
Sản phẩm có sẵn kho không?
Bảo hành bao lâu?
Có tư vấn kỹ thuật miễn phí?
Bao lâu nhận báo giá?
Có Datasheet PDF?
01 · Mô tả chi tiết
Thông tin sản phẩm
Model D Series Pumps Powered by ORBIS Technology
Media for chemicals
Operation brushless DC
Technology external-gear
Domain industrial, for the chemical industry
Other characteristics compact, standard, seal-less
Flow 160 l/h (42.2675 us gal/h)
Pressure 10 bar (145.038 psi)
Introducing a New Daring Solution D Series powered by ORBIS Technology
Tuthill Pump Group has drawn on over 125 years of positive displacement pump design and manufacturing experience to solve our customers’ most challenging problems. Building on a vast knowledge of hydraulics, mechanics, and electronics comes proven D Series pumps powered by ORBIS Technology.
ORBIS Technology-enhanced drive solution offers an integrated brushless DC motor with closed-loop control delivering a performance that satisfies a high variety of applications in a compact design with exceptional reliability and extended life.
D Series external gear pumps are known for their seal-less construction and non-pulsing flow which makes them perfect for precise circulating, dosing, and metering applications. If the application requires a leak-free, compact, and technically advanced pump, Tuthill’s D Series pumps with ORBIS Technology is the solution.
Features D Series Pumps Powered by ORBIS Technology
Robust D Series
Platform Compact Footprint
Only Static O-Ring Seals
Available Integrated Push-to-Connect Fittings
Neodymium Driven Magnet
Closed-Loop Speed Control
Variety of Control Options
Benefits D Series Pumps Powered by ORBIS Technology
ORBIS Technology utilizes a closed-loop speed control system that achieves a set point for speed very quickly and holds this point independent of load which ensures fluid delivery will be consistent regardless of application and system variables. The standard product supports four-wire and two-wire configurations.
The four-wire configuration allows speed control of 0 to 5 volts from 800 to 3600 RPM, tach out for speed monitoring, reversing control, as well as fault-out and current-out. An alternate simplified two-wire configuration can easily replace a brushed motor in OEM applications.
Tuthill’s robust D Series platform has proven performance and long life of up to 20,000 hours.
The pump is driven by a Neodymium magnet that delivers 85 mNm of torque to cover a wide range of applications. The compact footprint of the ORBIS pump and motor allows it to integrate into almost any application.
Static O-Ring seals are leak-free and make field repair with service packs simple. Also, optional integrated push-to-connect tube fittings reduce installation time by at least 50% and save additional space compared to traditional ports.
Suggested Applications D Series Pumps Powered by ORBIS Technology
Clinical Chemistry
Continuous Ink-Jet
Dialysis Equipment
Laser Cooling
Slide Staining
