Cognito
Cognito is the electric diaphragm pump (EODD) by Warren Rupp — IDEX Corporation (USA), from the same manufacturer as Sandpiper (AODD air-operated diaphragm pump). Uses an electric motor instead of compressed air: retains diaphragm pump advantages (self-priming, dry-running, solid passage, sealless) but saves up to 75% energy, with the Smart Insights IoT platform. CE & ATEX certified. TKT authorized distributor in Vietnam.
EODD · CE · ATEX
Diaphragm pump electric-driven, energy-saving & smart
Cognito retains all diaphragm pump advantages while eliminating the compressed air system — significantly reducing energy consumption and adding IoT monitoring.
Up to 75% energy savings
Direct electric drive, eliminating compressed air system losses — significantly reducing energy costs vs AODD.
No air compressor required
Completely eliminates compressed air system & piping — simplifies installation, reduces maintenance and noise.
Sealless, dry-running
Sealless design: self-priming, safe dry-running, solid passage up to 9 mm, field-repairable.
Smart Insights (IoT)
Remote pump connectivity, monitoring & analysis; predictive maintenance; standard leak detection sensor.
CE & ATEX certified
Compliant with CE and ATEX — suitable for hazardous area zones.
Same manufacturer as Sandpiper
Manufactured by Warren Rupp (IDEX, USA) — same brand as Sandpiper AODD pumps; TKT authorized distributor.
Select correctly electric diaphragm pump
Depending on flow rate, fluid and monitoring requirements — select the appropriate port size, material and IoT configuration.
Medium & small flow rate
Port 1\"–2\" — up to 300 LPM, compact, energy-saving for fluid transfer/metering.
High flow rate
Port 3\"–4\" — up to 800 LPM for heavy industry, solid passage up to 9 mm.
Energy reduction
Replace air-operated diaphragm pumps with EODD — save up to 75% energy, eliminate air compressor.
Monitoring & alerts
Smart Insights IoT — remote monitoring, predictive maintenance, leak sensor PLC-integrated.
Corrosive / particulate-laden fluid
Material: aluminum / stainless steel / polypropylene; PTFE, Santoprene membranes — for chemicals, slurries, coatings.
Hazardous area
ATEX-rated version for classified zones — oil & gas, solvents, flammable chemicals.
Electric diaphragm pump Cognito
Port 1\"–2\" (compact) · port 3\"–4\" (high flow) · Smart Insights monitoring platform.

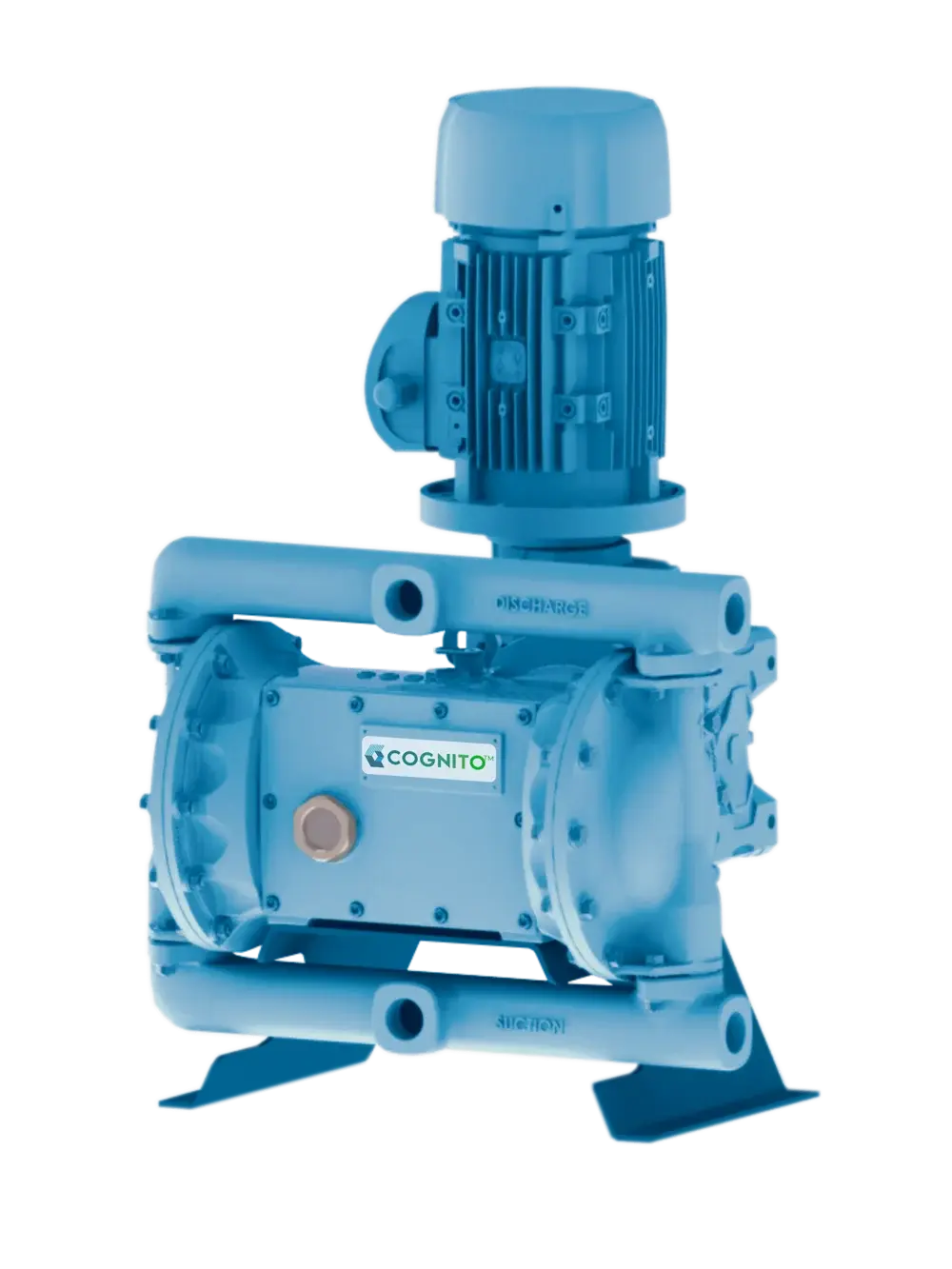

Thân kim loại (nhôm / inox)
Electric diaphragm pump EODD thân kim loại (nhôm/inox) cổng 1"–4" — bền cơ học, chịu áp cao cho hoá chất, sơn, khoáng sản, dầu khí.
- Port1"–4"
- Flow rateup to 800 LPM
- MaterialsNhôm / Inox
- DriveElectric motor
- Thân kim loại bền cho công nghiệp nặng & áp suất cao
- Tiết kiệm tới 75% điện vs AODD khí nén — không phớt, tự mồi

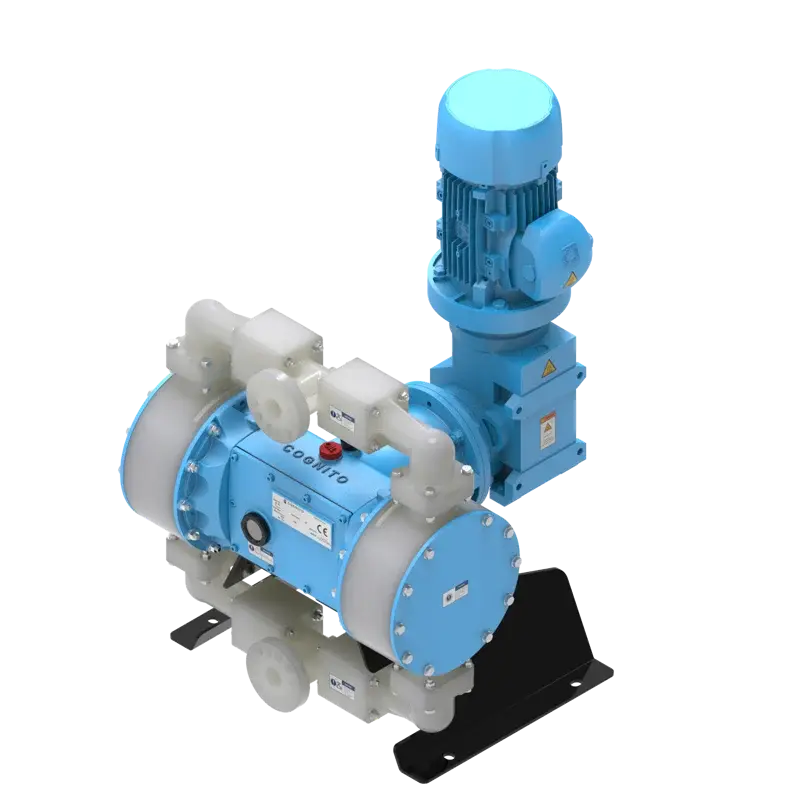

Thân nhựa Polypropylene (PP)
Electric diaphragm pump EODD thân nhựa PP cổng 1"–3" — kháng ăn mòn cao cho axit, kiềm, hoá chất ăn mòn mạnh.
- Port1"–3"
- MaterialsPolypropylene
- DiaphragmPTFE / Santoprene
- DriveElectric motor
- Thân PP kháng ăn mòn cho axit/kiềm mạnh
- Tiết kiệm tới 75% điện vs AODD — không phớt, chạy khô
Pump Cognito at Thái Khương
Filter by port size 1"–2" and 3"–4".
Cognito EODD 1 inch Diaphragm Pump (Metallic)
View details
Cognito EODD 2 inch Diaphragm Pump (Metallic)
View details

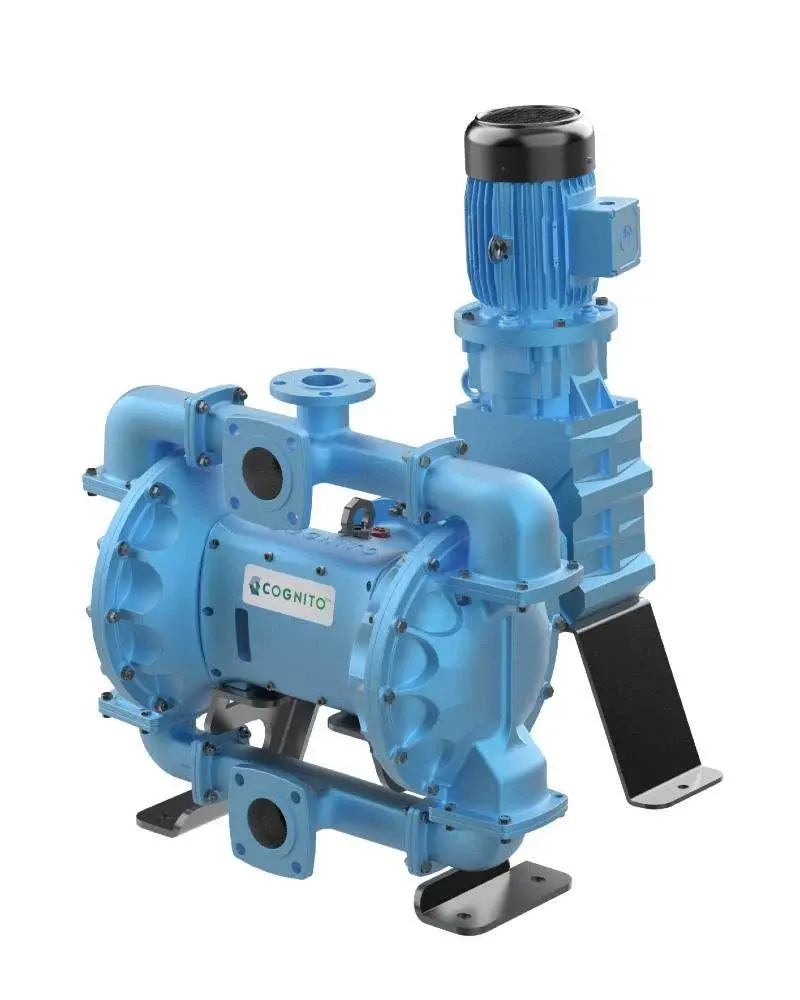

Cognito EODD 3 inch Diaphragm Pump (Metallic)
View details
Cognito EODD 4 inch Diaphragm Pump (Metallic)
View detailsElectric Diaphragm Pump Cognito EODD 1 inch (PP)
View details
Electric Diaphragm Pump Cognito EODD 1.5 inch (PP)
View details
Electric Diaphragm Pump Cognito EODD 2 inch (PP)
View details
Electric Diaphragm Pump Cognito EODD 3 inch (PP)
View detailsEODD cho difficult fluids
Cognito electric diaphragm pump for industries handling corrosive, abrasive, and viscous fluids — energy-efficient.
Chemicals · paint · ink · pigment
Transfer of corrosive chemicals, paint, ink, solvents — EODD sealless design, PP/PTFE materials, ATEX version for flammable solvents.
Pulp & packaging
Pumping of paper pulp, slurry, and abrasive additives — high flow rate 3"–4", energy-efficient alternative to air-operated diaphragm pumps.
Mining & metals
Dilute slurry, mineral processing chemicals, lithium battery — passes solid particles up to 9 mm, safe dry-running.
Oil & gas and pharmaceuticals
Hazardous (explosive) areas (ATEX version), clean pharmaceutical fluids — IoT monitoring for reliable operation.
Why trust us Cognito
EODD technology by Warren Rupp (IDEX) — energy-efficient, smart, CE/ATEX certified.
Electric diaphragm pump new generation
Cognito is the electric diaphragm pump (EODD) line from Warren Rupp — a company within the IDEX (USA), same manufacturer as the air-operated diaphragm pump Sandpiper. Warren Rupp has consolidated the former Sandpiper EODD line under the Cognito brand.
Cognito uses an electric motor + gearbox to drive the diaphragm, retaining diaphragm pump advantages (self-priming, dry running, solid particle passage, sealless) but saves up to 75% energy compared to AODD and integrates an IoT platform Smart Insights. CE & ATEX certified. TKT is the authorized distributor of Sandpiper / Warren Rupp in Vietnam.
TKT supplies Cognito electric diaphragm pumps genuine, with technical consultation on port/size selection, materials & IoT configuration based on flow rate/head and fluid type, installation, commissioning, and manufacturer warranty.
Pump FAQ Cognito
What is Cognito?
How does an EODD electric diaphragm pump differ from an AODD air-operated diaphragm pump?
How much energy does Cognito save?
What is Smart Insights?
Which industries is Cognito used for?
What support does Thái Khương Pumps provide for Cognito equipment?
Request a quotation electric diaphragm pump Cognito?
Thái Khương Pumps engineers provide technical consultation on port selection, materials, and IoT configuration based on flow rate/head and fluid type — helping reduce energy consumption compared to air-operated diaphragm pumps.
