Capable of tackling the toughest high-viscosity applications, GlobalGear® uses a robust pump design together with tougher, stronger, and more reliable materials to extend the pump’s life, reducing the total cost of ownership.

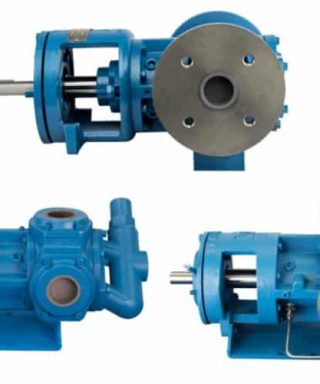

GlobalGear Series GG030-USA oil pump gear pump is a line of gear pumps that can be used to pump liquids with viscosity up to 150,000cSt. Specialized pumps for pumping lubricants, plastics, glues, asphalt, etc., are imported and distributed in Vietnam by Thai Khuong.

Advantages of the superiority of the GlobalGear Series GG030

• The pump is made in the USA, of course, the price goes hand in hand with quality, solid structure, compact size, easy installation in many positions, stable flow, details are made with absolute precision. making the pump more efficient than Chinese pumps on the market
• The pump has a built-in safety valve to avoid overloading the pump to help protect the pump and protect the pipeline system

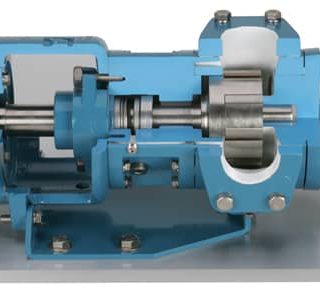

• Internal gears, two gears rotate in the same direction, resulting in less wear, lower noise, and higher viscosity materials
• New and genuine imported products 100% with full CO, CQ
• Is a line of gear pumps of Tuthill- USA. This is another affordable pump line with good quality in the high-end pump segment and is trusted by many factories and production lines.
• Tuthill gear oil pump is specialized for pumping lubricating oil, hydraulic oil and promoting the effect that few gears pump on the market can do, which is applied in transmission lines that need high temperature.
• The pump can withstand temperatures up to 150 degrees Celsius, pumping substances with a viscosity up to 150,000 CST and viscous substances that are normally not loaded by gear pumps such as asphalt, molasses, resin, glue. ….
• Made in the USA with quality, sturdy structure, compact size, easy to install in many positions, stable flow, precision-made details make the pump more efficient. other pumps on the market.
• In particular, this pump has a gear system that is meticulously machined, high precision makes the pump high efficiency, stable, durable, and has a built-in safety valve to avoid overloading the pump to help protect the pump. and protect the pipeline system.
• The outstanding advantage is that the gears are internal, the two gears rotate in the same direction to help the gears wear less, lower noise and pump substances with higher viscosity.

Specifications of Tuthill GlobalGear Series GG030

Model	Tuthill GG030
Material	Gang (Cast Iron)	Thép (Cast Steel)	Inox (SS)
Flow	5,7 m3/h
Spin speed	1450 rpm
Pump pressure	13,8 bar	13,8 bar	10,8 bar
Maximum temperature	316 °C	316 °C	260 °C
Maximum viscosity	220000cst

The characteristic curve of the Tuthill GlobalGear Series GG030

Application of Tuthill GlobalGear Series GG030

• Specialized pumps are used to pump viscous substances such as Diesel, FO, MO, LO,…
• Pumps are applied in many industries on the market such as asphalt pumps in the asphalt concrete industry, automobile manufacturing industry, machinery or Diesel oil pump, plastic pump, packaging industry, etc.
• Pumps are also used in the petrochemical industry, recycled oil, tire burning oil,…
• Pumping molasses in the production line and filling in the sugar factory, pumping syrup, chilli sauce, sauce,…Need more information about gear pump oil, asphalt, molasses,.. contact us.

---

*Technical team/consultant Thai Khuong Pumps is ready to connect to support you with information about industrial pumps as quickly as possible. Contact immediately with Thai Khuong Pumps, so we can support you better.
