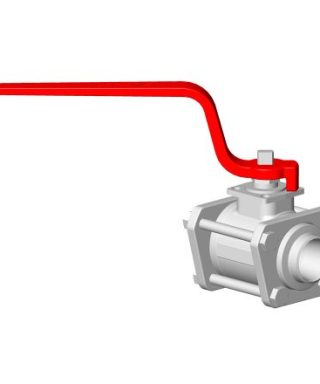

DBX DBAX ball valve - Definox

DBX DBAX ball valve are used in a wide range of process and ancillary fluid applications, designed for efficient cleaning, fully adjustable flow and safe for food grade stainless steel applications. rust 316L.

DBX DBAX ball valve – Definox

The DEFINOX DCX3 shut-off valve has been designed to respond to market requirements, both from a cleanability and operational perspective efficiently. Its different configurations incorporate the cutoff, tap-off, and orientation functions. With their simple design, which has been tried and tested for many years, the floating PFA seal shut-off valves have successfully passed the EHEDG and 3A tests, guaranteeing their hygienic design, which is particularly suitable for the food-processing industries.

The modular design facilitates component interchangeability and incorporates a wide range of options and variants. DCX range shut-off valves can thus cover a large range of applications and process configurations while at the same time meeting market expectations and requirements.

They are fitted as standard with a PFA floating seal plug, ensuring excellent valve cleaning. PFA floating seal, perfectly cleanable, ensuring perfect leak-tightness at high temperature and good resistance to chemical products. Spherical body with thick walls ensuring excellent resistance to expansion stresses and optimum cleanability.

Can be used in numerous applications and configurations Various sealing solutions (different grades of latest generation elastomer PFA metal-on-metal). Different body configuration options: L – T – X – half X. Numerous end connections possible: SMS – DIN – Clamp. Removable and easily transformable pneumatic actuator: NO-NC-Double acting. Easy and quick maintenance thanks to the clamp subassembly assembly.

Material DBX DBAX ball valve

Body: Stainless steel 1.4404 / AISI 316L

Rings :

– Standard PFA version

– elastomers (EPDM or FKM)

– Sterile PFA version

– Formable PTFE diaphragm

O-ring: Elastomer (EPDM or FKM)

Handle: stainless steel (closed right or left)

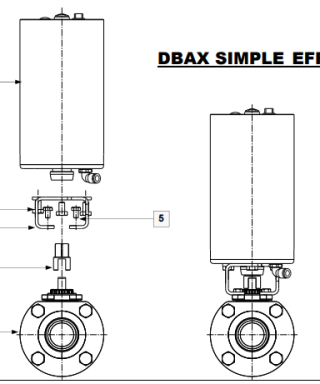

Pneumatic actuator:

Normally Open “NO”
Normally Closed “NC”
Dual effect “DE”

Body configurations DBX DBAX ball valve

Outstanding advantages of DBX DBAX ball valve

Definox valves are favoured by many outstanding advantages such as:

– Detachable actuator

Easily switch normally open NO, NC normally closed or dual action DA.
Can be equipped with a Sorio controller.

– Full flow: DN8 to DN50

– Reduce traffic: DN15 to DN65

– Left or right mounting handle

– Butt-welded

– Two versions available: full stream and reduced stream

– Automatic version comes with DPAX. butterfly valve pneumatic actuator

– Facility to connect the control device

Application of DBX DBAX ball valve

With the above outstanding advantages, defines valves are very popular with investors in many fields such as:

– Food, pharmaceutical, chemical, and cosmetic industries

– Animal feed processing industry,…
