Name: Explosion-proof Air Operated Motor JP-AIR 2 Is Made Of Stainless Steel 316Ti. Motor JP-AIR 2, 600 Watt At Max. 6 Bar Working Pressure, With Silencer And On/off Switch.
Brand: Thai Khuong Pumps
SKU: TKTPUMP0941400488
Availability: InStock
Rating: 4 (12 reviews)

HÀNG CÓ SẴN

GỌI GIAO NGAY: 0941.400.488

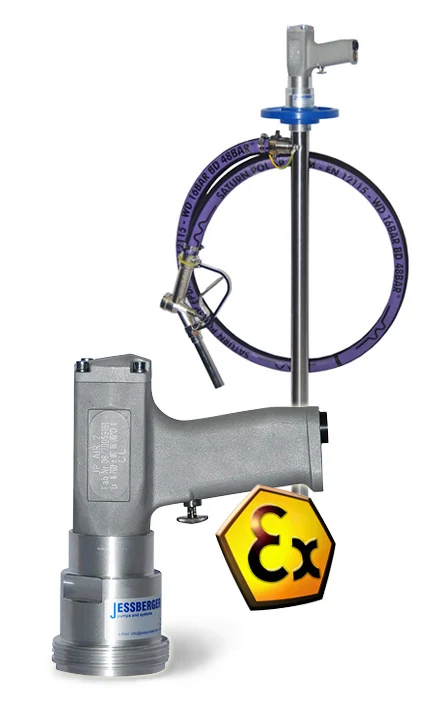

Explosion-proof Air Operated Motor JP-2 – JESSBERGER

General product information:

Name: JP-AIR 2
Class: Drum Pump set stainless steel
Type: Drum Pump
Application: alkalies, low-viscous fluid, neutral, slightly aggressive media…
Origin: Germany
Brand: JESSBERGER
The product is officially distributed in Vietnam by Thái Khương Pumps

Technical data:

Flow rate (with hose and oval gear meter): up to 80 l/min (Rotor)* up to 66 l/min (impeller)
Head: up to 10 m (Rotor)* up to 15 m (impeller)
Avg temperature: up to 80°C
Viscosity: up to 600 mPas*
Density: up to 1.5
External stainless steel 360Ti, Ø 41 mm
Thread connection G 1¼
ZELM 09 ATEX 0424 X certification

Kỹ sư đang trực tuyến

Hotline kỹ thuật 24/7 0941.400.488

Gọi ngay Báo giá

Hoặc nhắn Zalo ngay

Chính hãng EU/G7 CO/CQ đầy đủ, truy xuất nguồn gốc

Bảo hành 12 tháng Hỗ trợ kỹ thuật suốt vòng đời thiết bị

Kỹ thuật 19 năm Tư vấn spec, chọn bơm & tối ưu hệ thống

Giao hàng nhanh Kho 5.000+ mã phụ tùng sẵn sàng xuất ngay

THÔNG SỐ KỸ THUẬT

General product information:

Name: JP-AIR 2
Class: Drum Pump set stainless steel
Type: Drum Pump
Application: alkalies, low-viscous fluid, neutral, slightly aggressive media…
Origin: Germany
Brand: JESSBERGER
The product is officially distributed in Vietnam by Thái Khương Pumps

Explosion-proof Air operated motor JP-AIR 2 is made of stainless steel 316Ti.Motor JP-AIR 2, 600 Watt at max. 6 bar working pressure, with silencer and on/off switch.IBEx U07 ATEX B014 X Certification

The air operated motor is supplied with a silencer. At the handle is an on/off starting button that can be fixed.

Jessberger JP-AIR 2:

[row][col span__sm=”12″ align=”center”]More about product’s detailed technical data is here:[button text=”DOWNLOAD” radius=”99″ link=”https://www.jesspumpen.com/wp-content/uploads/Drum_pump_en.pdf” target=”_blank”][/col][/row]
