PEX PEAX sampling valve - Definox

PEX PEAX sampling valve integrate a physical barrier between the interior of the valve and the external environment. The sample is taken under optimum aseptic conditions.

The PEX PEAX sampling valve allows for safe, easy sampling using various sterilization methods: by flame, circulating a cleaning product, or steam injection. Their modular design and numerous connections allow them to adapt to all configurations.

PEX PEAX sampling valve – Definox

Features

• Simple and secure sampling solution

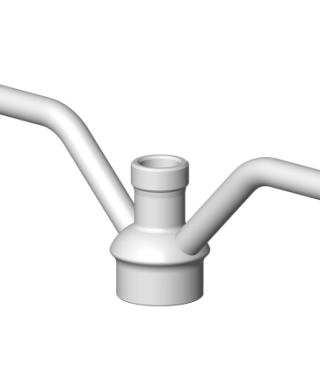

• Flame sterilisation (1 outlet PEX1 / PEAX1) or steam injection sterilisation or cleaning with a sterilising agent (2 outlets PEX2 / PEAX2)
• Neutral diaphragm available FDA certified
• Quick and easy to change operating devices

– DN 6/8, 10/12 and 16/18

– One-piece mass-machined body

• Homogeneous surface finish
• Removing roughness or defects, bound to outlet welding.

– 6 types of sealing suitable to many applications

• PFA/EPDM or PFA/FKM plug
• EPDM, FKM, anti-acid FKM, VMQ diaphragm.

– 6 connections for greater adaptability

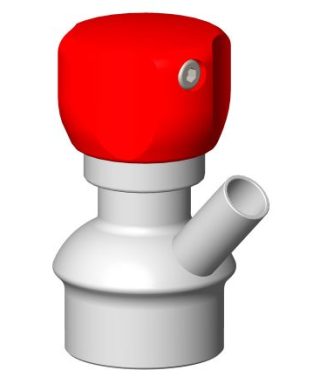

• Wall welded
• Pipe line welded

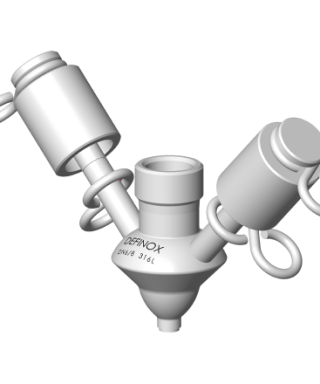

• Male gas end
• Clamp (dia. 50.4 mm)
• Mini-clamp (dia. 34 mm)
• Micro-clamp (dia. 25.4 mm).

– Signal and control

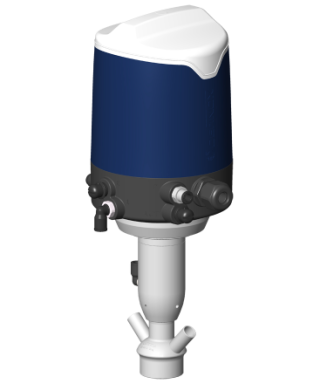

•  From Sorio control top, available in Digital AS-i or IO-Link versions.

– Special material, on request

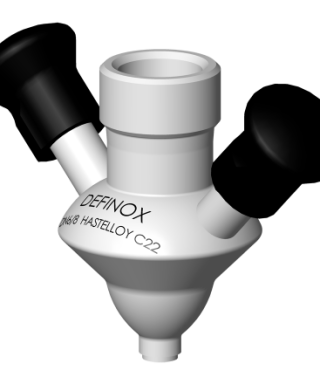

• HC22
• SMO 254
• AL6XN.

– Ergomic handle with opening and closing stop device

• White plastic
• Stainless steel
• Red version, or other color, on request.

Technical Advantages PEX PEAX sampling valve

• Body: stainless steel 1.4404 / 316L machined from solid
• Handle: white plastic material or stainless steel 1.4301 / 304
• Actuator: stainless steel 1.4301 / 304
• Diaphragm: elastomer (fluorinated elastomer (FKM) – EPDM or white silicon)

Replacing pfa seals PEX PEAX sampling valve

• • Max. temperature: +120^oC/+248^oF
  • Min. temperature: 0^oC/+32^oF
  • Max. working pressure: 10 bar (1000 kPa)/145 psi
  • Actuator air supply pressure: 4 to 6 bar (400 to 600 kPa)/58 to 87 psi
  • Air connection: Ø 4/6

  Valve body connections

  • Wall welded
  • Clamp
  • Pipe line welded
  • Males gas end

Application of PEX PEAX sampling valve

With the above outstanding advantages, defines valves are very popular with investors in many fields such as:

– Food, pharmaceutical, chemical, and cosmetic industries

– Animal feed processing industry,…
