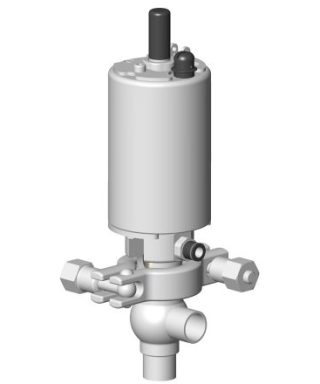

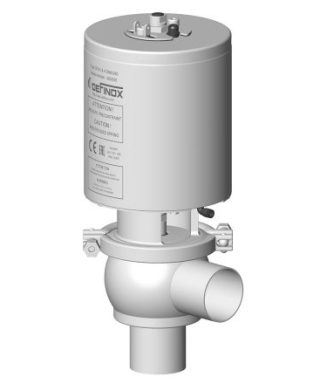

DCX3 mechanically adjustable relief valve - Definox

DCX3 mechanically adjustable relief valve Definox – The single sealing adjustable relief valve combines safety and accuracy thanks to its finetuning system. A predefined pressure relieves the main circuit protecting certain devises or circuits.

DCX3 mechanically adjustable relief valve – Definox

• Reduction of tolerance of the adjustment value
• Easy to adjust with a standard wrench
• High precision of response during excess pressure
• Working security – protection against excessive pressure
• Compact – Adjustment system integrated in the valve

Technical Advantages DCX3 mechanically adjustable relief valve

Max. temperature: 248ºF (depending on seal type)

Min. temperature: 23ºF

– From DN 1/2″ to DN 100

• SMS, DIN or US versions.

– Balanced plug

• For use exceeding 10 bars.

– Elastomer sealing

• EPDM or FKM for fluid with particles or abrasive.

– Mass-machined spherical body

• Configurations available: L, T, cross or half-cross.

– One-piece plug with PFA floating seal

• Sturdy design avoiding any risk of breakage or unscrewing.

– Precise adjustment of the setpoint value

• Thanks to a simple manual control with a standard wrench or precision regulator.

– Sealed protection of the preset pressure value

– Dismantable actuator Normally Open NO

Application of DCX3 mechanically adjustable relief valve

With the above outstanding advantages, defines valves are very popular with investors in many fields such as:

– Food, pharmaceutical, chemical, and cosmetic industries

– Animal feed processing industry,…
