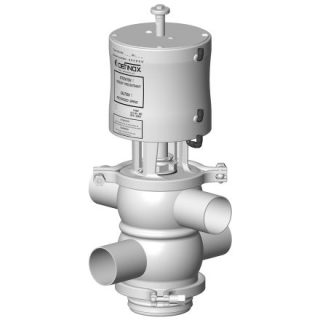

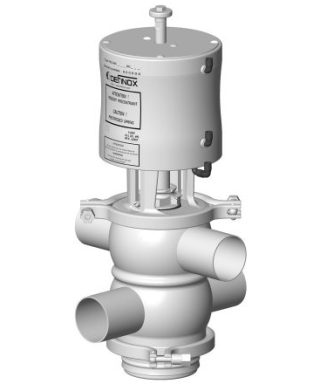

VDCI MC PMO-c double independent plugs mixproof valve – Definox

Name: Mixproof valve
Brand: Definox
Origin: France
Applications: food, chemical,… Products are officially distributed in Vietnam by Thai Khuong Pumps

Specifications:

Dimensions: SMS – DIN – US: From DN38 (1″ 1/2) to DN125 (5″)
Signalling equipment: Visible on single or double stainless steel bracket. Point-to-point or AS-i control unit. ACS (from DN25 to DN125). Option: lantern detector for the breakaway of the upper plug
Surface conditions: RA exterior = 1.2 µm (150 grit); RA interior = 0.8 µm (180 grit).

Kỹ sư đang trực tuyến

Hotline kỹ thuật 24/7 0941.400.488

Gọi ngay Báo giá

Hoặc nhắn Zalo ngay

Chính hãng EU/G7 CO/CQ đầy đủ, truy xuất nguồn gốc

Bảo hành 12 tháng Hỗ trợ kỹ thuật suốt vòng đời thiết bị

Kỹ thuật 19 năm Tư vấn spec, chọn bơm & tối ưu hệ thống

Giao hàng nhanh Kho 5.000+ mã phụ tùng sẵn sàng xuất ngay

THÔNG SỐ KỸ THUẬT

VDCI MC PMO-c double independent plugs mixproof valve are used in a wide variety of process and ancillary fluid applications, designed for efficient cleaning. The double seal mixproof valve VDCI MC PMO-c complies with 3A recommendations (85-03) according to sanitary demands on the Dairy industry. Crossing 2 different flow paths is possible even during plug lift.

VDCI MC PMO-c double independent plugs mixproof valve – Definox

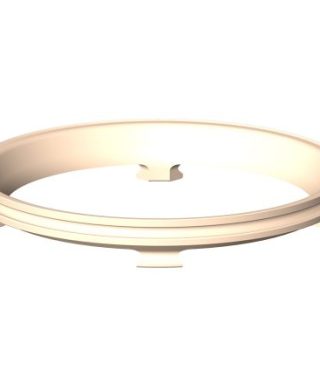

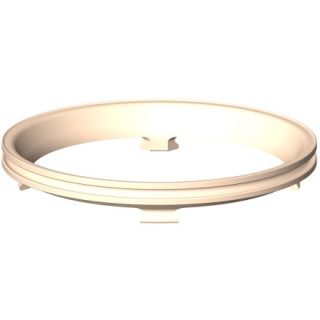

Simple and high-tech design • No need for an additional seal, thanks to an intermediate plug made from PEEK resistant plastic (FDA approved)• 3 identical O-rings which avoid the risk of confusion between the spare parts during maintenance operations• The innovative design of the intermediate plug prevents turbulences into the leakage chamber and facilitates its correct positioning onto the lower plug.

Technical Advantages VDCI MC PMO-c double independent plugs mixproof valve

– The intermediate plug ensures double protection, even during the seat lifting operations– No risk of mixing between two different liquids– Natural vacuum in the leakage chamber, thanks to the patented design of the lower plug, which prevents any CIP solution transfer into the opposite leakage chamber.

Ưu điểm của van chống thấm VDCI MC PMO-C — Ưu điểm của **van chống thấm VDCI MC PMO-C**

Structure VDCI MC PMO-c double independent plugs mixproof valve

3A designOur valve technology complies with 3A standard 85-02 which allows pasteurized milk in one chamber while CIP solution is flowing into the other chamber, without any risk of cross mixing. Another feature is to provide a leakage section identical to the one of the process pipeline.

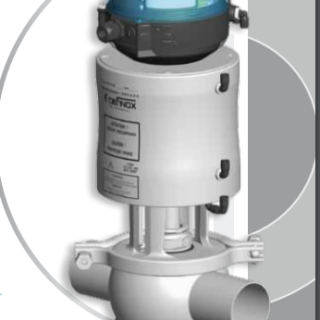

Application of VDCI MC PMO-c double independent plugs mixproof valve

With the above outstanding advantages, defines valves are very popular with investors in many fields such as:– Food, pharmaceutical, chemical, and cosmetic industries– Animal feed processing industry,…

Get the detailed specification file of the VDCI MC PMO-c double independent plugs mixproof valve here:

Download
