DCX3 regulating shut-off valve Fitted with a positioner, allows the precise adjustment of the flow rate of any fluid, from a signal (0) 4/20 mA or 0/10V.
DCX3 regulating shut-off valve – Definox

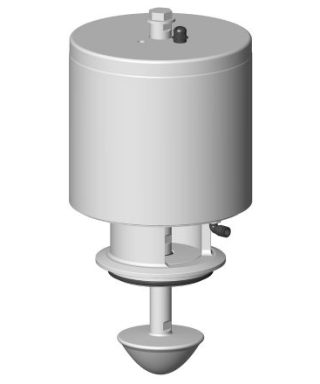

Based on the standard DCX3 changeover valve technology, L configuration, DEFINOX has developed a supply regulating valve fitted with a shaped disk.
Combined with a positioner, it enables the flow, pressure or level of any supply fluid to be regulated from a (0) 4/20 mA or 0/10 V signal.
-
- From DN25 to DN76

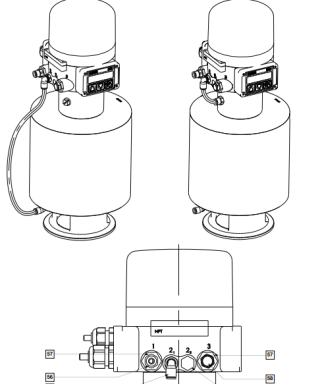

- Electronically controlled (PID regulator, electropneumatic control) mounted in a sealed box
- Instantaneous plug position measurement device
- As an option, elastomer seal to ensure absolute leaktightness
- Shaped disk
- Small in size
- Facility to program its electronics
Technical Advantages DCX3 regulating shut-off valve
– Plug shape depending on the process
– Precise adjustment of the opening and closing of the valve, smoothly
– Simple programming
– Positioner 4/20 mA
– Dismantable actuator
- Easily transformed Normally Open NO, Normally Closed NC or Double Acting DA.
– 6 plug profiles
- Tight or profiled
- Small or very small section
- EPDM, FKM or diaphragm.
Application of DCX3 regulating shut-off valve
With the above outstanding advantages, defines valves are very popular with investors in many fields such as:
– Food, pharmaceutical, chemical, and cosmetic industries
– Animal feed processing industry,…
Get the detailed specification file of the DCX3 regulating shut-off valve – Definox here:
