The DCX3 single shut-off valve with its complete interchangeability of options and variations can be used in processes requiring fluid circulation and direction. The changeover valve is available eitheir in manual or automatic version and is equipped with a floating seal that ensures good cleaning of the valve.
DCX3 single-sealing shut-off valve – Definox
The DEFINOX DCX3 shut-off valve has been designed to respond to market requirements, both from a cleanability and operational perspectivey efficiently. Its different configurations incorporate the cutoff, tap-off, and orientation functions. With their simple design, which has been tried and tested for many years, the floating PFA seal shut-off valves have successfully passed the EHEDG and 3A tests, guaranteeing their hygienic design, which is particularly suitable for the food-processing industries.
The modular design facilitates component interchangeability and incorporates a wide range of options and variants. DCX range shut-off valves can thus cover a large range of applications and process configurations while at the same time meeting market expectations and requirements.
They are fitted as standard with a PFA floating seal plug, ensuring excellent valve cleaning. DCX3 PRODUCT ADVANTAGES: DN 25 to DN 150 (certain variants up to DN 250), SMS-DIN, and US versions. PFA floating seal, perfectly cleanable, ensuring perfect leak-tightness at high temperature and good resistance to chemical products. Spherical body with thick walls ensuring excellent resistance to expansion stresses and optimum cleanability.
Can be used in numerous applications and configurations Various sealing solutions (different grades of latest generation elastomer PFA metal-on-metal). Different body configuration options: L – T – X – half X. Numerous end connections possible: SMS – DIN – Clamp. Removable and easily transformable pneumatic actuator: NO-NC-Double acting. Easy and quick maintenance thanks to the clamp subassembly assembly.
Material DCX3 single-sealing shut-off valve
Body: Stainless steel 1.4404 / AISI 316L
Rings :
– Standard PFA version
– elastomers (EPDM or FKM)
– Sterile PFA version
– Formable PTFE diaphragm
O-ring: Elastomer (EPDM or FKM)

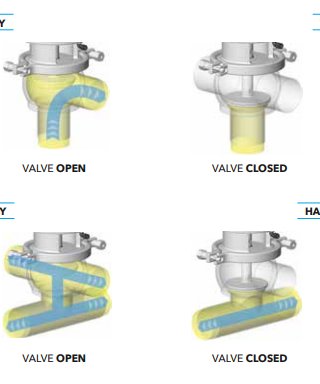

Body configurations DCX3 single-sealing shut-off valve

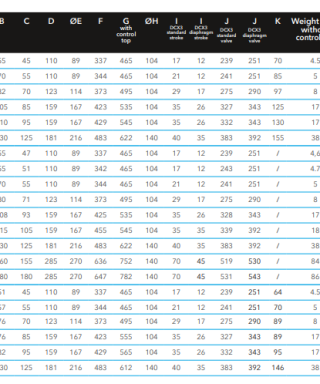

Dimensions DCX3 single-sealing shut-off valve
Outstanding advantages of DCX3 single-sealing shut-off valve
Definox valves are favored by many outstanding advantages such as:
– One-piece plug with PFA. floating seal
Rugged design, avoid any risk of breaking or breaking
PEEK plugs for steam and chemical applications as a variant.
– Elastic sealing
EPDM or FKM
Adapted to abrasive fluid or fluid with particles.
– Detachable actuator
Easy to switch DA normally open NO, normally closed, double-acting DA.
– From DN 25 to DN 150
SMS, DIN, or US version
Some variants go up to DN 250.
– Use on many applications
Various sealing solutions: PFA, elastomer, metalized
Multiple end connections: SMS, DIN, Clamp
Application of DCX3 single-sealing shut-off valve
With the above outstanding advantages, defines valves are very popular with investors in many fields such as:
– Food, pharmaceutical, chemical, and cosmetic industries
– Animal feed processing industry,…
